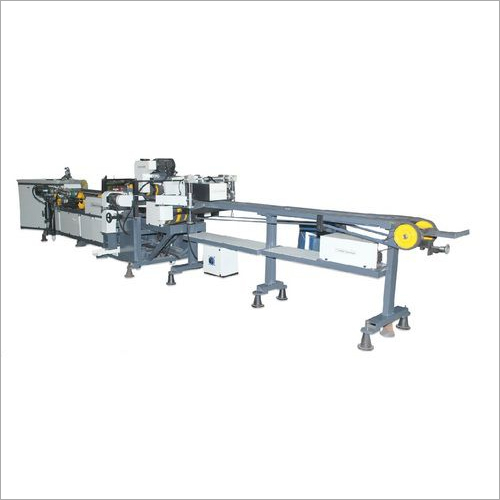

welding electrode plant in Egypt

Name: welding electrode plant in Egypt
Brand: DECCAN DYNAMICS
Price: 2500000 INR
Availability: InStock

Price 2500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

welding electrode plant in Egypt Specification

Dimension (L*W*H)
9500 mm x 1800 mm x 2200 mm

Automation Grade
Semi-Automatic / Automatic (Options Available)

Power Supply
415 V / 3 Phase / 50 Hz

Material
Mild Steel / Stainless Steel (Critical Parts)

Production Capacity
Up to 6 Tons/Day

Features
High efficiency, user-friendly operation, robust design, easy maintenance, versatile electrode size support

Drive Type
Electric Motor Driven

Speed
Adjustable, up to 1200 rods/hour

Working Temperature
10C - 45C

Machine Type
Welding Electrode Production Plant

Noise Level
Below 75 dB

Weight
Approx. 5000 kg (varies with configuration)

Cooling System
Water Cooled / Air Cooled Options

Size
Standard/Customizable

Usage & Applications
Manufacturing welding electrodes for industrial, construction, and infrastructure projects

Control System
PLC Based Control Panel

Batch Cycle Time
Approx. 2.5 hours

Coating Type Supported
Rutile, Basic, Cellulosic, Iron Powder

Baking Oven Capacity
1000 kg/batch

Main Motor Power
7.5 kW

Electrode Diameter Range
2.0 mm 5.0 mm

Installed Power
Approx. 65 kW

Paint/Finish
Industrial-grade anti-corrosive paint

Wire Straightening Precision
0.05 mm

Electrical Safety
Integrated overload protection and emergency stop

Stick Length Range
250 mm 450 mm

welding electrode plant in Egypt Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

About welding electrode plant in Egypt

Specification

Production Capacity 21000 kg per hour
Automation Grade Semi-Automatic
Phase 3 Phase
Material MS ( Body )
Power Source Electric
Voltage 440V
Surface Finishing Color Coated
Country of Origin Made in India
Motor Power 100 HP

Versatile Electrode Production

The plant accommodates electrode diameters from 2.0 mm to 5.0 mm and stick lengths between 250 mm and 450 mm, supporting a comprehensive array of welding requirements. Multiple coating types, including rutile, basic, cellulosic, and iron powder, are easily handled, ensuring adaptability for diverse applications.

High Efficiency & Safety Features

An integrated wire straightening precision of 0.05 mm and a powerful 1000 kg/batch baking oven drive high output-up to 6 tons per day. The system incorporates electrical safety elements such as overload protection and emergency stop, maintaining operational security for continuous, dependable performance.

User-Friendly Automation & Customization

With options for semi-automatic or automatic operation, the plant's PLC-based control panel promotes intuitive workflow management. Adjustable production speeds, customizable dimensions, advanced cooling, and an industrial-grade anti-corrosive finish collectively offer flexibility, robust longevity, and ease of maintenance.

FAQ's of welding electrode plant in Egypt:

Q: How is the welding electrode plant operated and controlled?

A: The plant is equipped with a PLC-based control panel, allowing easy management of semi-automatic or automatic production processes. This user-friendly system helps operators monitor, adjust speeds, and maintain consistent output with minimal manual intervention.

Q: What is the typical production capacity and cycle time of the plant?

A: The plant can produce up to 6 tons of welding electrodes per day, with an adjustable speed of up to 1200 rods per hour. Each batch cycle takes approximately 2.5 hours, efficiently supporting large-scale industrial production needs.

Q: What coating types and electrode sizes can the plant handle?

A: It supports rutile, basic, cellulosic, and iron powder coatings. Electrode diameters range from 2.0 mm to 5.0 mm, and stick lengths from 250 mm to 450 mm, making the plant suitable for a variety of welding applications.

Q: Where can this electrode plant be utilized?

A: This versatile plant is ideal for manufacturing welding electrodes used in industrial, construction, and infrastructure projects across Egypt and beyond. Its adaptability makes it suitable for both large-scale and specialized electrode production.

Q: What safety features are included in the plant's design?

A: The system integrates electrical safety mechanisms such as overload protection and emergency stop functions to ensure secure operation and protect equipment and personnel during production.

Q: What materials are used in the construction of the plant?

A: Critical parts of the plant are constructed from stainless steel, while other structural components utilize mild steel. The plant is finished with industrial-grade anti-corrosive paint to ensure durability and long service life.

Q: What are the benefits of the plant's adjustable speed and automation options?

A: Adjustable speed up to 1200 rods/hour and automation enable efficient handling of different production volumes, reducing labor costs and boosting productivity. The automation options increase consistency in production while minimizing operational errors.
